| 브랜드 이름: | Enerkey |
| 모델 번호: | EK-C16S5A |
| MOQ: | 50 pieces |
| 가격: | $42.5-$45.5 |
| 포장에 대한 세부 사항: | Strong paper box +EVA Foam |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Disruptive performance: 5A patented balancing technology
High-efficiency energy transfer: Adopting energy transfer active balancing solution, single output 5A high current, accurately repairing battery cell voltage difference (accuracy ±5mV), significantly extending battery life, and avoiding energy waste of traditional resistance balancing.
Full battery cell compatibility: Supports 16-series battery packs such as ternary lithium/lithium iron phosphate/lithium titanate, covering harsh scenarios such as energy storage and electric vehicles, and the voltage range is adapted to 12~16 series flexible configuration.
Multiple protection and intelligent control
Industrial-grade safety protection: Integrated overcharge, over-discharge, overcurrent, short circuit and temperature protection, automatic activation of heating function at low temperature, ensuring stable operation in extreme environments of -20℃~65℃.
Silent low temperature rise design: Energy consumption during balancing is reduced by 40%, heat generation is reduced by 50%, and fanless operation is adapted to closed spaces such as RVs/energy storage cabinets.
Core parameter list
Item Specifications
Balanced current Continuous 5A
Voltage accuracy ±5mV (full cycle active calibration)
Applicable scenarios Energy storage power station/electric forklift/RV power supply/low-speed four-wheel vehicle

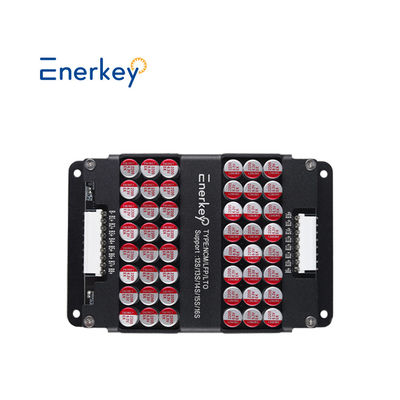

| Fit Capacitive Active Balancer with Aluminum Shell(5A 4S-16S) | ||||
| Product model | EK-C4S5A | EK-C8S5A | EK-C12S5A | EK-C16S5A |
| Battery string | 3/4S | 6/7/8S | 9/10/11/12S | 12/13/14/15/16S |
| Size(mm) | L86.1*W50.1*T19.5 | L96.5*W89.5*T19.5 | L141.5*W89.5*T19.5 | L145.5*W96.5*T19.5 |
| Weight with box | 0.12kg | 0.22kg | 0.32kg | 0.42kg |
| Suitable Battery type | NCM / LFP (Li-ion/Lifepo4) | NCM / LFP/LTO (Li-ion/Lifepo4/Lto) | ||
| Suitable Battery capacity | 30AH-300AH | |||
| Base material/Surface treatment | FR-4/HASL | |||
| Single cell voltage operating range | Li-ion/Lifepo4:2.7-4.2V LTO:1.8-4.2V | |||
| Undervoltage protection sleep voltage | Li-ion/Lifepo4:<2.7V LTO:<1.8V | |||
| Equilibrium method | Patented (patent number: ZL 2019 1 1259513.3) balancing architecture Fit capacitor method, the entire battery pack is balanced at the same time. | |||
| Equilibrium current | 0.1V voltage difference is 1A balancing current, voltage difference is proportional to balancing current, maximum allowable operating current is 5.5A |
|||
| Whether need an external power supply | No external power supply is required, relying on the internal energy transfer of the battery to achieve balance of the entire group | |||
| Voltage equalization accuracy | 5mV(Typical value) | |||
| Quiescent current | 0.1mV(Typical value) | |||
| LED indicator | 1. LED steady on, balanced working 2. LED off, undervoltage sleep | |||
| Balance cascading | Support balanced cascading for battery packs, for example, It can cascade for 11S, 24S, 36S, 48S.....and so on. | |||

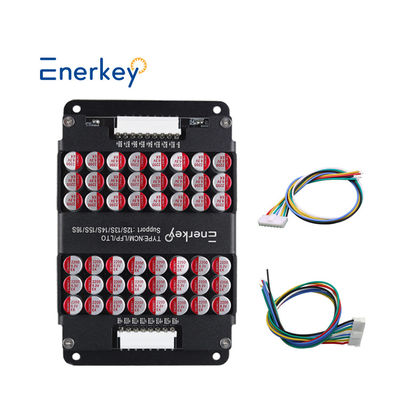

| Accessories | 18awg Therminal wire 40cm | |||
| Work temperture | -10℃ - +60℃ | |||
| Feature | 24H Non-stop overall balancing, supports cascading, undervoltage protection, ultra-low loss, etc. | |||
| Application | Outdoor energy storage, home energy storage, industrial and commercial energy storage, RV modification, low-speed vehicles, solar photovoltaic, etc., temporarily used for battery balancing maintenance, repair, etc. | |||
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
